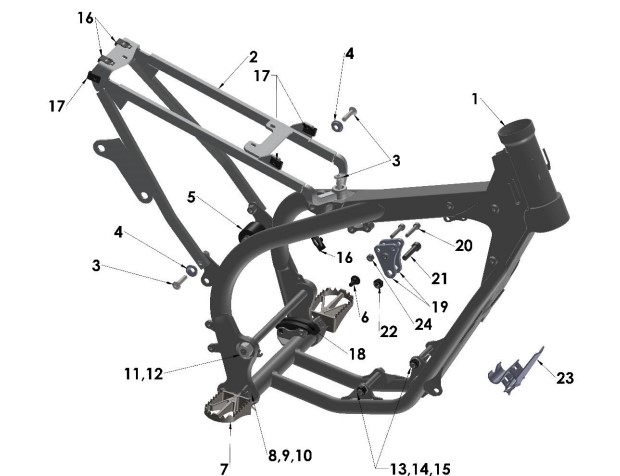

| Ref | Part Number | Description | Retail | |
|---|
| 1 | FAC62024 | FRAME - 2024 CX65 | $ 777.78 |
|
| 2 | FAC60027 | SUBFRAME CX65 2022 | $ 165.67 |
|
| 3 | HCSP0701 | 7MM TORX FLAT HEAD | $ 2.76 |
|
| 4 | FCMU0109 | COMPRESSION LIMITER - SUB FRAME - LOWER MOUNT-SR&65 2021 | $ 10.55 |
|
| 5 | FCC60020 | CHAIN ROLLER W BOLT BEARING & SEALS | $ 18.34 |
|
| 6 | HCSP0610 | BOLT - SHOULDER - 6MM ALUMINUM - ANODIZED CLEAR | $ 3.2 |
|
| 7 | TCMU0139 | ULTRAWIDE FOOTPEG KIT 50cc / 65cc | $ 77.76 |
|
| 8 | TCC60012 | SPRING - FOOTPEG ULTRA WIDE | $ 5.43 |
|
| 9 | FCMU0031 | CLEVIS PIN - FOOTPEG | $ 4.32 |
|
| 10 | HCCP0008 | COTTERPIN - 1/8` X 3/4` 316 STAINLESS | $ 0.53 |
|
| 11 | GCC60020 | BOLT - TITANIUM - SWINGARM PIVOT - CX65 | $ 143.42 |
|
| 12 | HCNL1201 | M12-1.25 LOCKNUT FINE THREAD | $ 3.2 |
|
| 13 | HCBH0865 | M8 X 65 HH ZINC | $ 1.54 |
|
| 14 | HCWF0801 | R/B HCWF0802 8MM FLAT WASHER | $ 0.53 |
|
| 15 | HCNL0801 | R/B HCNL0803 - M8 LOCKNUT CLEAR ZINC 10MM TALL | $ 1.09 |
|
| 16 | HCHA0003 | 6MM CLIP NUT-PLASTIC/PIPE MNT. | $ 2.2 |
|
| 17 | HCCN0001 | 5MM CLIP-ON NUT | $ 2.09 |
|
| 18 | TCMU0044 | CHAIN SLIDE - LOWER - 65/KING 2021 | $ 16.56 |
|
| 19 | FCC60117 | HEAD STAY - CX65 2024 | $ 19.88 |
|
| 20 | HCBC0601 | R/B HCBC0616 - M6 X 16 SHCS ZINC | $ 1.09 |
|
| 21 | HCBC0803 | OBSOLETE - M8 X 35 SHCS ZINC | $ 1.09 |
|
| 22 | HCNL0803 | M8 LOCKNUT 8MM TALL | $ 2.2 |
|
| 23 | TCC60041 | GUARD - PV - FRAME MOUNTED | $ 34.88 |
|
| NOT SHOWN | MCMUZT28 | ZIP TIP 8` FRAME MOUNTED | $ 1.4 |
|
