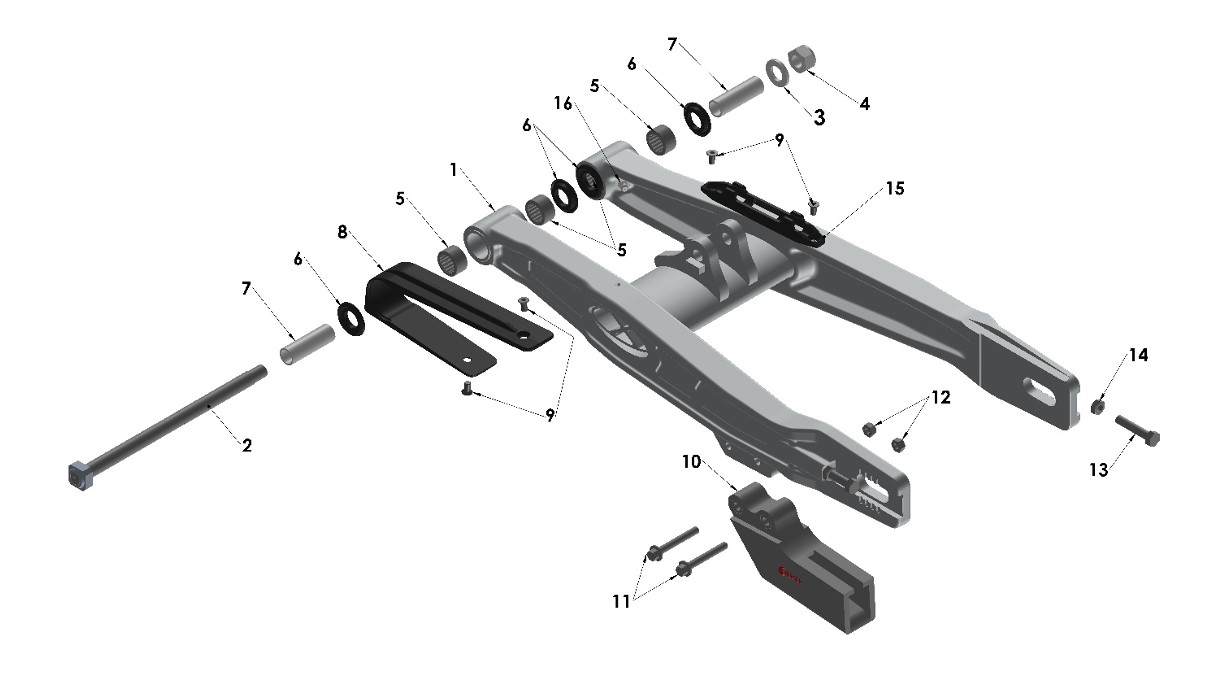

| Ref | Part Number | Description | Retail | |
|---|
| 1 | GAC62025 | SWINGARM - FORGED - 2025 - CONSULT TSB0425 IF UPGRADING | $ 595.88 |
|
| 2 | GCC60020 | BOLT - TITANIUM - SWINGARM PIVOT - CX65 | $ 143.42 |
|
| 3 | HCWF1202 | 12MM FLAT WASHER | $ 0.53 |
|
| 4 | HCNL1201 | M12-1.25 LOCKNUT FINE THREAD | $ 3.2 |
|
| 5 | GCC60017 | BEARING - DRAWN CUP CAGED NEEDLE - SWINGARM PIVOT - 15 22 12 | $ 18.78 |
|
| 6 | GCMU0047 | SEAL THRUST BEARING - SWINGARM - ALL 2025 | $ 9.88 |
|
| 7 | GCC60019 | SPACER TUBE - SWINGARM PIVOT | $ 28.8 |
|
| 8 | PCC60006 | SWING ARM GUARD - FRONT - 2025 CX65 | $ 25.57 |
|
| 9 | HCFH0516 | M5 X 16 FLAT HEAD | $ 1.09 |
|
| 10 | PCC60004 | CHAIN GUIDE (BOTTOM) CX65 | $ 25.57 |
|
| 11 | HCBC0645 | M6 X 45 SHCS ZINC | $ 1.09 |
|
| 12 | HCNF0602 | 6MM NYLOC FLANGE NUT CLASS 8 | $ 1.09 |
|
| 13 | HCBH0701 | M7 X 35 HH ZINC | $ 1.09 |
|
| 14 | HCNS0701 | 7MM NUT | $ 0.64 |
|
| 15 | GCC60051 | USE GCC60051M - GUIDE - BRAKE HOSE - CX65 2025 - | $ 8.88 |
|
| 16 | GCMU0012 | GREASE FITTING SMALL - ZERK | $ 1.73 |
|
